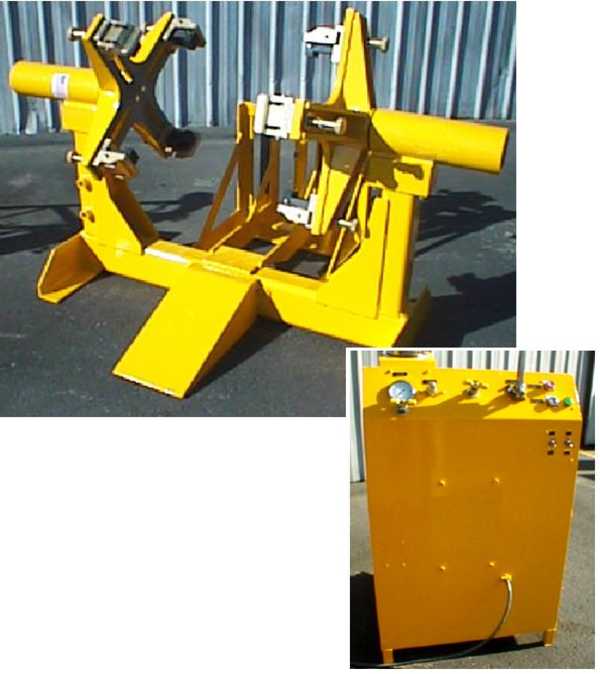

Tire Bead Breaker 12,000 Lb Capacity

Model #: 9470-011
Our Bead Breakers are designed and built to meet or exceed the most demanding requirements of the international ground support wheel shops and provide low maintenance operation. They will withstand harsh environmental conditions, rugged use and provide many years of long and dependable service. Most of our Bead Breakers are ringless and can support all rotary wing, fighter, general aviation, commuter, regional, narrow and wide body aircraft with bias and radial tires. All Bead Breaker Fingers are easily adjusted to the diameter of the wheel assembly.
Product Information
Rim Diameter RangeMin. - Max. 7.0 - 21.0 inches 178 - 533 mm
Tire Width Capacity 16.5 inches 419 mm
Length 46.0 inches 1,168 mm
Width 68.5 inches 1,740 mm
Height 42.0 inches 1,067 mm
Net Weight (Est.) 1,300 lb 590 kg

Standard Features
  • 12,000 Lb Capacity
  • Electric Driven Hydraulic Pump
  • Universal transformer operates on all major electrical voltages
  • Multi-Aircraft Spider Plate Assembly with four (4) each Adjustable Spades on each side
  • Standard 'O' Rings and Teflon Back-up Rings
  • No special tools required
  • Skydrol Resistant Yellow Paint or to customer specifications
Documentation
  • Operation and Maintenance Manual
  • Load Test Reports
  • Certificate of Conformance
  • Factory New - 12 Month Written Warranty

Product Data Sheet:
  Download PDF
