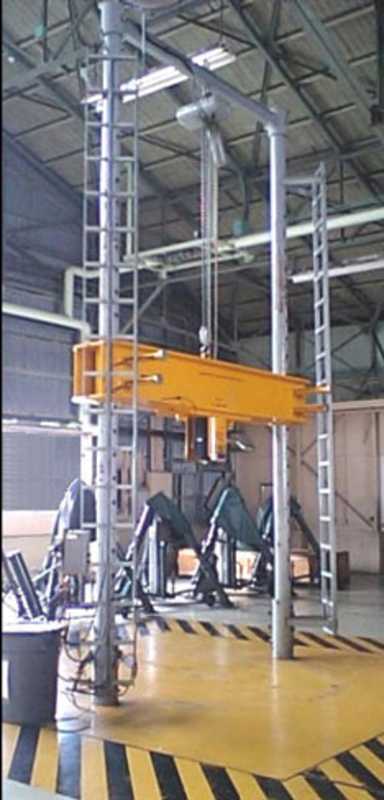

Universal Jack Tester 125 Ton Capacity

Model #: 9773-010
Our static Universal Jack Testers are designed to provide accurate load testing of both Tripod and Axle Jacks built by any hydraulic jack manufacturer. This tester is permanently mounted into the ground. An electronic load cell and digital electronic read-out provide easy and accurate readings. Rugged construction provides many years of continuous service, even in harsh environmental conditions.
Product Information
Min. Opening Height 28.5 inches 724 mm
Min. Opening Height with Arm 10.5 inches 267 mm
Max. Opening Height 260.0 inches 6,604 mm
Opening Width 100.0 inches 2,540 mm
Overall Structure Height 344.0 inches 8,738 mm
Net Weight (Est.) 11,000 lb 4,990 kg
Base Dimensions (W x L x H) 230 x 230 inches 5,842 x 5,842 mm

Standard Features
  • 125 Ton Capacity - tests axle and tripod jacks in any position
  • Cross Beam - supports electrical hoist
  • Power Requirements - 110 VAC, 3 Phase, 50/60 Hertz
  • Electrical Hoist to raise and lower adjustable load beam
  • Adjustable Load Beam - in increments of 8 inches and painted High-Visibility Yellow
  • Swing Away Load Arm provides minimum height of Axle Jack Testing and is painted high visibility yellow
  • Electronic Load Cell housed within adjustable load beam
  • Electronic Digital Read-Out and Control Box - provides digital read-out of load. Controls the raising and lowering of adjustable load beam
  • Two (2 ) Columns with Ladders and Safety Harnesses provide access to adjustable load beam locking pins
  • Finish - Skydrol Resistant Gray Paint
Documentation
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Warranty

Product Data Sheet:
  Download PDF
