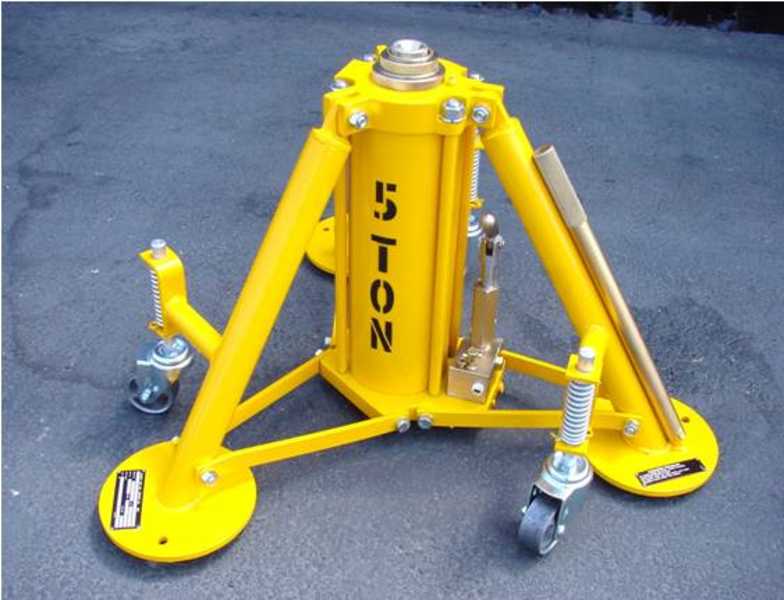

Universal Tripod Jack 5 Ton Capacity
Model #: 2994-010Our Universal Tripod Jacks are used for a variety of aircraft jacking positions (Narrow & Wide Body) during normal aircraft maintenance checks. These jacks provide two stages of hydraulic lift, allowing each jack the capability of being used on multiple aircraft applications. The automatic safety by-pass valve prevents the lifting of a load greater than the capacity of the jack. Threaded rams with mechanical lock nuts prevent lowering of the jack under load in case of hydraulic leakage. Our Tripod Jacks meet or exceed all known commercial and military requirements and specifications, and are cycle tested, load tested and proof-load tested to ensure the jack’s hydraulic and structural integrity. They are designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service. We guarantee our customer a quality and dependable product and assure them of our continued product support regardless of the age of the jack.
| Product Information | ||
| Vertical Capacity | 5.0 ton | 4.5 m tonnes |
| Min. Height | 20.0 inches | 508 mm |
| Hydraulic Lift | 26.0 inches | 660 mm |
| Screw Extension | 4.0 inches | 102 mm |
| Max. Height | 50.0 inches | 1,270 mm |
| Net Weight (Est.) | 245 lb | 111 kg |
| Available Optional Equipment | Air Powered Pumping Unit Dual Reading Pressure Gauge Assembly Adjustable Leveling Footpads with Bubble Level Tow Bar Assembly | |
Standard Features
- Two (2) Hydraulic Stages with Mechanical Lock Nuts
- Spring Loaded Swivel Casters
- Skydrol Resistant Yellow Paint or to customer specifications
- Operation and Maintenance Manual
- Certificate of Conformance
- Load Test Reports
- Factory New - 12 Month Written Warranty
Product Data Sheet:
