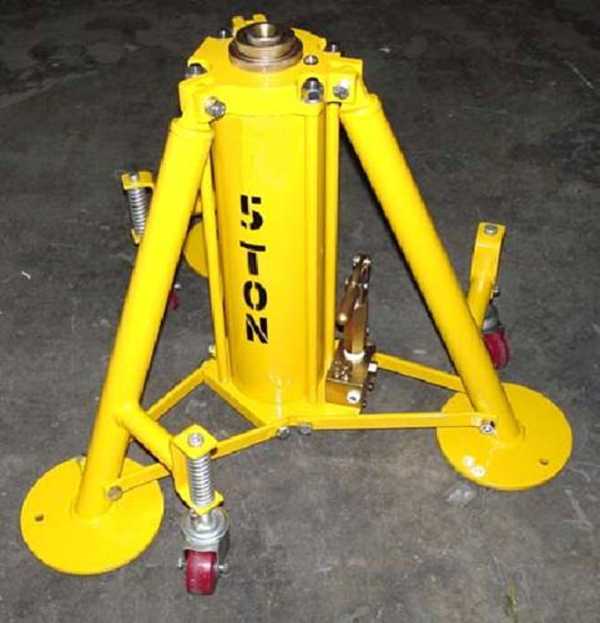

Universal Tripod Jack 5 Ton Capacity

Model #: 985-010
Our Universal Tripod Jacks are used for a variety of aircraft jacking positions (Narrow & Wide Body) during normal aircraft maintenance checks. These jacks provide two stages of hydraulic lift, allowing each jack the capability of being used on multiple aircraft applications. The automatic safety by-pass valve prevents the lifting of a load greater than the capacity of the jack. Threaded rams with mechanical lock nuts prevent lowering of the jack under load in case of hydraulic leakage. Our Tripod Jacks meet or exceed all known commercial and military requirements and specifications, and are cycle tested, load tested and proof-load tested to ensure the jack’s hydraulic and structural integrity. They are designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service. We guarantee our customer a quality and dependable product and assure them of our continued product support regardless of the age of the jack.
Product Information
Vertical Capacity 5.0 ton 4.5 m tonnes
Min. Height 24.0 inches 610 mm
Hydraulic Lift 36.5 inches 914 mm
Screw Extension 4.0 inches 102 mm
Max. Height 64.5 inches 1,638 mm
Net Weight (Est.) 300 lb 137 kg
Available Optional Equipment Air Powered Pumping Unit
Dual Reading Pressure Gauge Assembly
Towbar

Standard Features
  • Two (2) Hydraulic Stages with Mechanical Lock Nuts
  • Spring Loaded Swivel Casters
  • Skydrol Resistant Yellow Paint or to customer specifications
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 36 Month Written Warranty

Product Data Sheet:
  Download PDF
