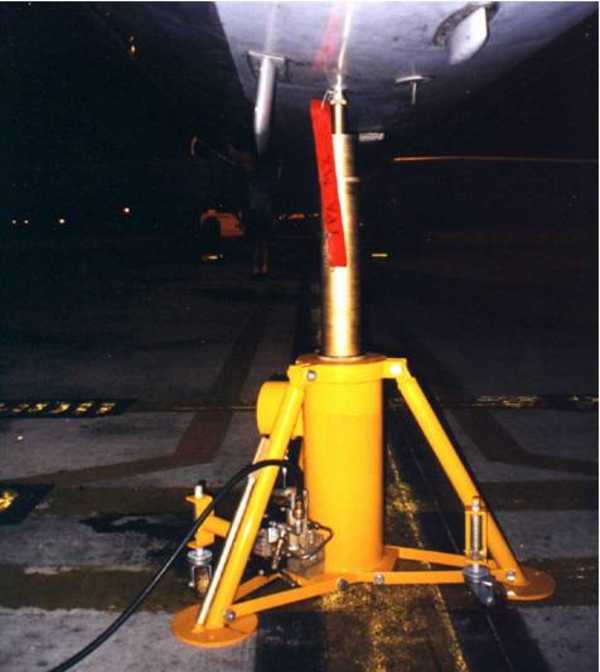

Universal Tripod Jack 5 Ton Capacity

Model #: 8018-012
Our Universal Height Tripod Jacks are used on and for a variety of aircraft jacking applications (Narrow & Wide Body) during normal aircraft maintenance checks. These jacks provide the customer with a variety of low minimum height tripod jacks with two stages of hydraulic lift for low and high wing, nose and tail jacking applications. They are designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service. The automatic safety by-pass valve prevents the lifting of a load greater than the capacity of the jack. Threaded rams with mechanical lock nuts prevent lowering of the jack under load in case of hydraulic leakage. Our Universal Tripod Jacks meet or exceed all known commercial and/or military requirements and specifications, and are cycle tested, load tested and proof-load tested to ensure the jack’s hydraulic and structural integrity. We guarantee our customer a quality and dependable product and assure them of our continued product support regardless of the age of the jack.
Product Information
Vertical Capacity 5.0 ton 4.5 m tonnes
Min. Height 30.0 inches 762 mm
Hydraulic Lift 44.0 inches 1,118 mm
Screw Extension 16.0 inches 406 mm
Max. Height 90.0 inches 2,286 mm
Net Weight (Est.) 375 lb 170 kg
Available Optional Equipment Air Powered Pumping Unit
Dual Reading Pressure Gauge Assembly
Towbar
Leveling Footpads

Standard Features
  • Two (2) Hydraulic Stages with Mechanical Lock Nuts
  • Spring Loaded Swivel Casters
  • Skydrol Resistant Yellow Paint or to customer specifications
Available Optional Equipment
  • Dual Reading Pressure Gauge Assembly
  • Air Powered Pumping Unit
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 36 Month Written Warranty

Product Data Sheet:
  Download PDF
