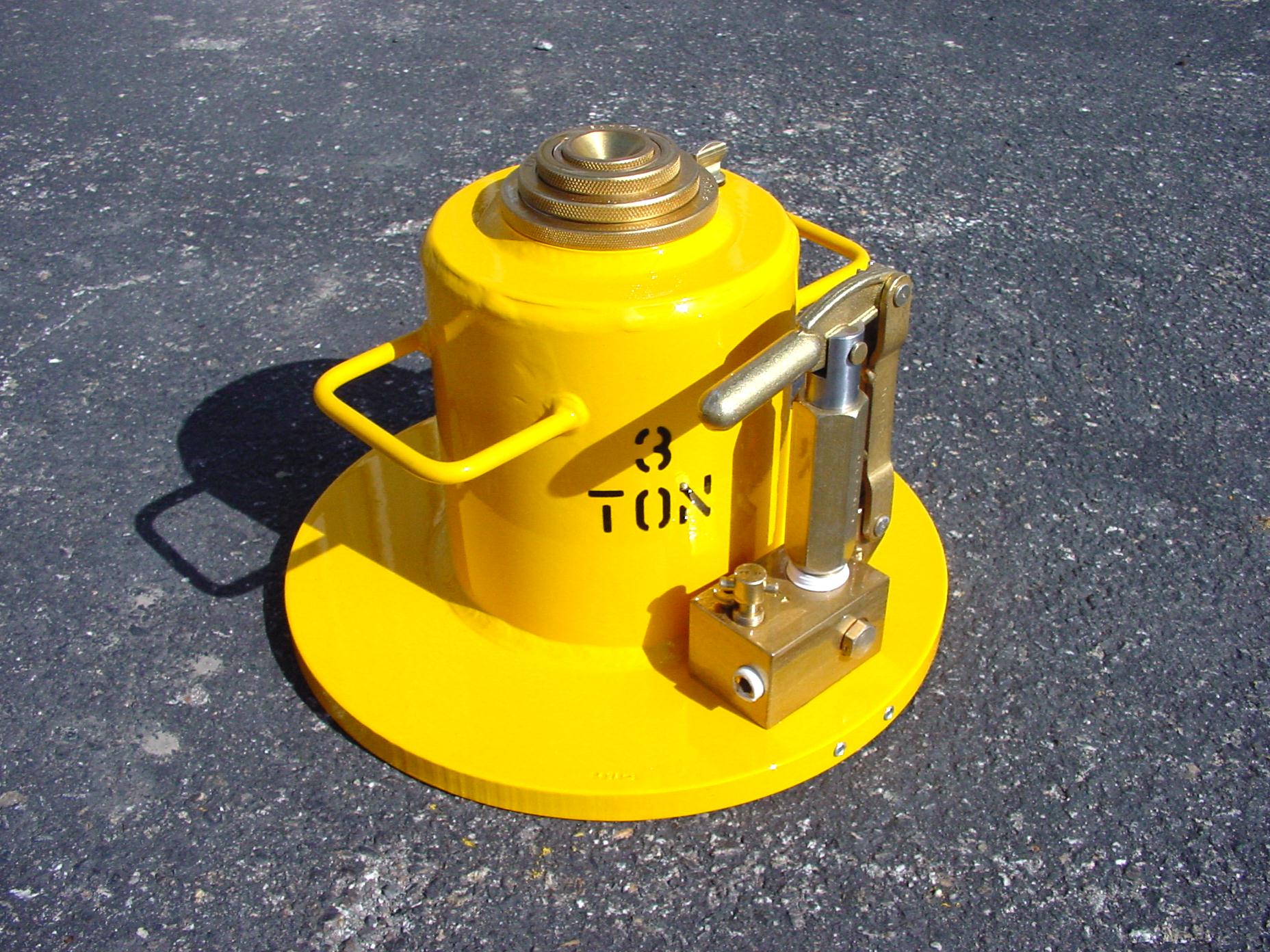

Hand Carry Axle Jack 3 Ton Capacity

Model #: 2979-010
Our Hand Carry Axle Jacks are designed to meet jacking specifications for normal tire/wheel and brake replacement, and in most cases for both main and nose landing gears for most business, commuter and wide body airplanes. This jack provides maximum capacity within a light weight and compact configuration for ease of carrying and transporting to the jacking site. Our Hand Carry Axle Jacks are completely self-contained with manual hand pump. Our Model 9346-010 contains an air powered pumping unit and a handling and positioning dolly.
Product Information
Minimum Height 10.5 inches 267 mm
Hydraulic Lift 20.5 inches 521 mm
Screw Extension 5.5 inches 140 mm
Maximum Height 36.5 inches 927 mm
Diameter of Base 15.0 inches 381 mm
Max. Height of Rocker Arm 9.31 inches 236 mm
Net Weight (Est.) 100 lb 45 kg

Standard Features
  • 3 Ton Capacity
  • Manual Hand Pump
  • Pressure Relief Valve Assembly
  • Mechanical Lock Nuts - 3 Stages
  • Carrying Handle
  • Pump Handle
  • Skydrol Resistant Yellow Paint
Documentation
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 12 Month Warranty

Product Data Sheet:
  Download PDF
