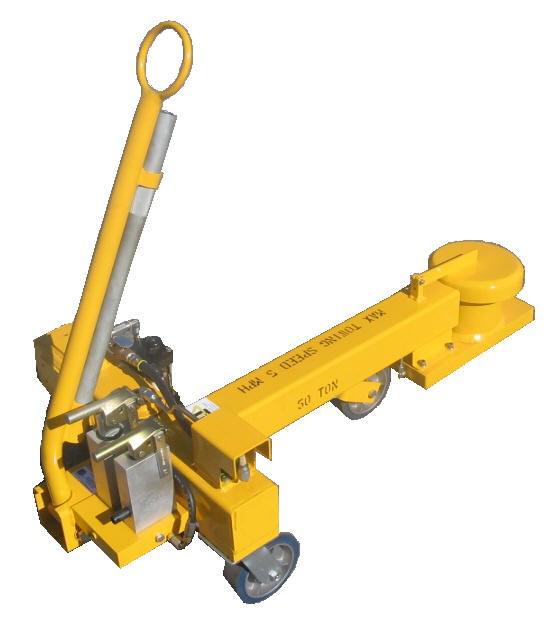

Single Acting Alligator Axle Jack 50 Ton Capacity

Model #: 5007-56
Our Single-Acting Alligator Axle Jack is designed for normal Wheel/Tire and Brake Changes. The cylinder head is mounted on a T-frame with three casters and comes with Manual and Air Powered Pumping Units. It is also available with an Optional Pressure Gauge Assembly. The Evac-U-Tract™ feature utilizes the air or nitrogen supply that is being used to raise the jack. Once activated, the air supply automatically retracts the ram back down inside the cylinder assembly. This retraction will facilitate the easy removal of the axle jack out from under the aircraft jacking point. This same retraction permits the use of the cylinder rain cover which protects the cylinder assembly from physical and environmental damage.
Product Information
Minimum Height 7.0 inches 178 mm
Hydraulic Lift 12.0 inches 305 mm
Screw Extension 3.5 inches 89 mm
Maximum Height 22.5 inches 572 mm
Width of Base 7.0 inches 178 mm
CL Cylinder to End of Base 6.25 inches 159 mm
Depth of Base 35.5 inches 902 mm
Length 51.5 inches 1,308 mm
Width 26.0 inches 660 mm
Net Weight (Est.) 450 lb 204 kg

Standard Features
  • 50 Ton Single-Acting Cylinder
  • Dual Manual Hand Pumps
  • Air Powered Pumping Unit
  • Evac-U-Tract™ - Air Assisted Ram Retraction
  • 6" Diameter Casters
  • Tow Bar Assembly
  • Skydrol Resistant Yellow Paint
Documentation
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Written Warranty

Product Data Sheet:
  Download PDF
