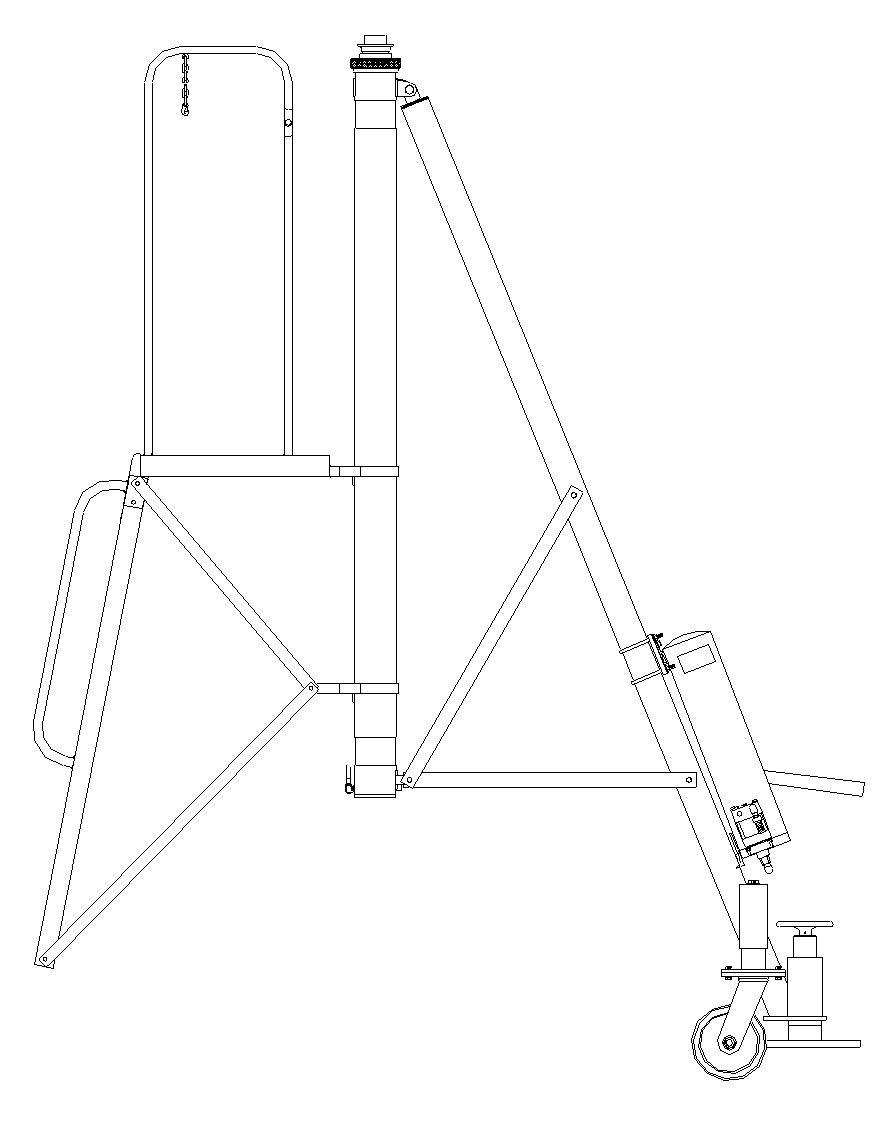

Fixed Height Tripod Jack

Model #: 10110-35
Our Fixed Height Tripod Jacks are used on and for specific aircraft jacking applications during normal aircraft maintenance checks. Our tripod jacks are designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service.
Product Information
Vertical Capicity 10.0 9.1
Minimum Height 110.0 2794
Hydraulic Lift 70.0 1778
Screw Extension 18.0 457
Maximum Extended Height 198.0 5029

Standard Features
  • Constructed for ease of assembly, operation and maintenance
  • Manifold Hydraulics - Includes Manual & Air Powered Pumping Units, Dual Reading Pressure Gauge Assembly (Reading in Tons/PSI) and External Relief Valve Assembly
  • Steel Reservoir with sight gauge. Also includes a hydraulic isolation valve.
  • Mechanical Lock Nut
  • Operator Platform/Ladder Assembly
  • Tow Bar Assembly
  • Spring Loaded Swivel Casters with Caster Locks (Maximum towing speed 5 MPH)
  • Adjustable Leveling Footpads with Bubble Level
  • Protective Cylinder Rain Cover
  • Skydrol Resistant Yellow Paint or to customer specifications
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 36 Month Written Warranty
Item Download:
Detailed Specifications - PDF
