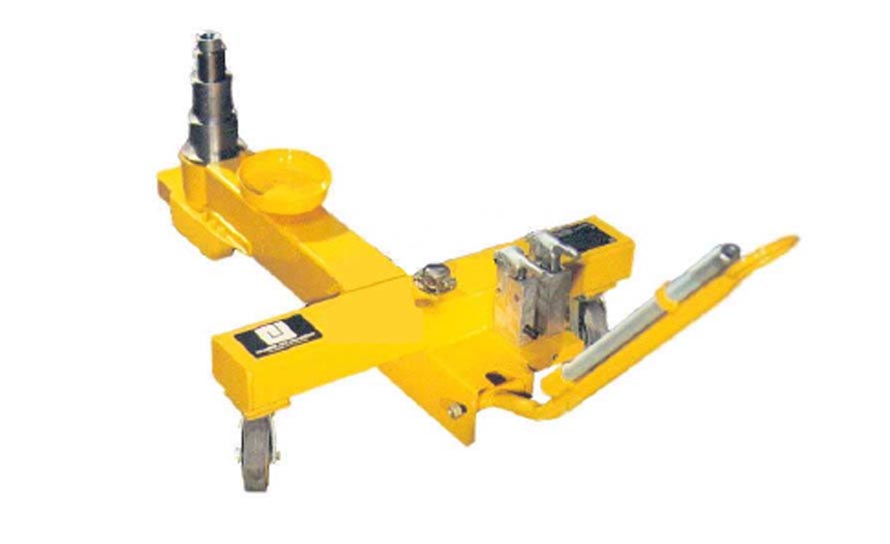

Single Acting 65 Ton Alligator Axle Jack

Model #: 6510-56
Our single-acting axle jacks are used worldwide for all normal axle jacking applications for both narrow and wide body aircraft. With 6-inch casters, these jacks are highly maneuverable and include both dual hand pumps and an air pump for ease of operation. Included is our exclusive EVAC-U-TRACT™ cylinder retraction assist, making the single-acting jack cylinder function as a double-acting cylinder. This permits faster removal of the jack from under the aircraft, and with complete ram retraction the cylinder is better protected.
Product Information
Vertical Capacity 65.0 58.9
Minimum Height 10.25 260
Hydraulic Lift 10.75 273
Screw Extension 4.25 108
Maximum Extended Height 25.25 641
Net Weight (Est.) 500 187
Crated Weight (Est.) 600 224
Crated Dimensions (Est.-L x W x H) 71 x 38 x 30 1803 x 965 x 762
CU FT Crated (Est.) 32 0.9

Standard Features
  • 65 Ton Single-Acting Cylinder
  • Dual Manual Hand Pumps
  • Air Powered Pumping Unit
  • Evac-U-Tract™- Air Assisted Ram Retraction
  • 6" Diameter Casters
  • Tow Bar Assembly
  • Skydrol Resistant Yellow Paint
Documentation
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Written Warranty
Item Download:
Detailed Specifications - PDF
